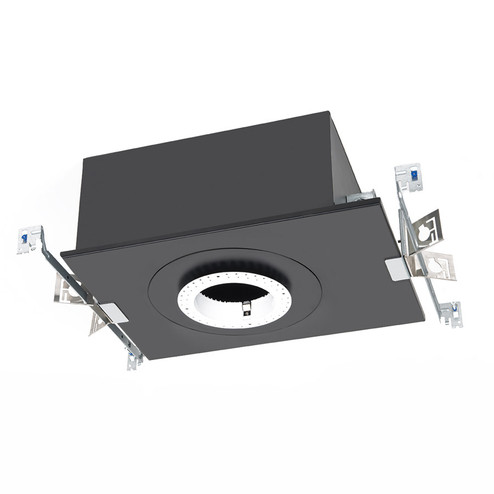

WAC Lighting LED Recessed Housing by W.A.C. Lighting from the Volta collection in Aluminum finish Volta is the quintessential high-performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 Lumens. Available in New Construction IC Rated Airtight, or Remodel Non-IC Airtight with emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED light engine with a replaceable high-powered LED module, and are available in a variety of options including round, square, adjustable, wall wash, shallow regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control. {ADDITIONAL FINISH INFORMATION: Aluminum}
Characteristics and Features
FAMILY:
VOLTA
STANDARD STYLE:
TRANSITIONAL
IMAGE INFO:
ACTUAL
LIGHT SOURCE:
LED
MATERIAL:
20 GAUGE COLD ROLLED STEEL
UL LISTED:
ETL CETL
UL RATING:
ETL CETL
Dimensions & Measurements
HEIGHT:
6.65
HEIGHT RANGE:
0-15''
WIDTH:
13.13
WIDTH RANGE:
15-20''
EXTENSION:
17.69
Electrical Specifications
NUMBER OF BULBS:
1
BULB TYPE:
MODULE
BULB BASE:
LED MODULE
VOLTAGE:
120.00
MAX WATTAGE:
15.00
Included Components
Warranty and Product Information
MANUFACTURER WARRANTY:
5 YEAR FUNCTIONAL 2 YEAR FINISH
PARTS DIAGRAM:
CLICK HERE
Product Availability
ON DISPLAY IN SHOWROOM:
No
IN STOCK IN SHOWROOM:
No
QUANTITY AVAILABLE AT MANUFACTURER:
148
Shipping Information
SHIP WEIGHT:
5.62LB
BOX SIZE:
22.00 X 10.00 X 16.50
